Model

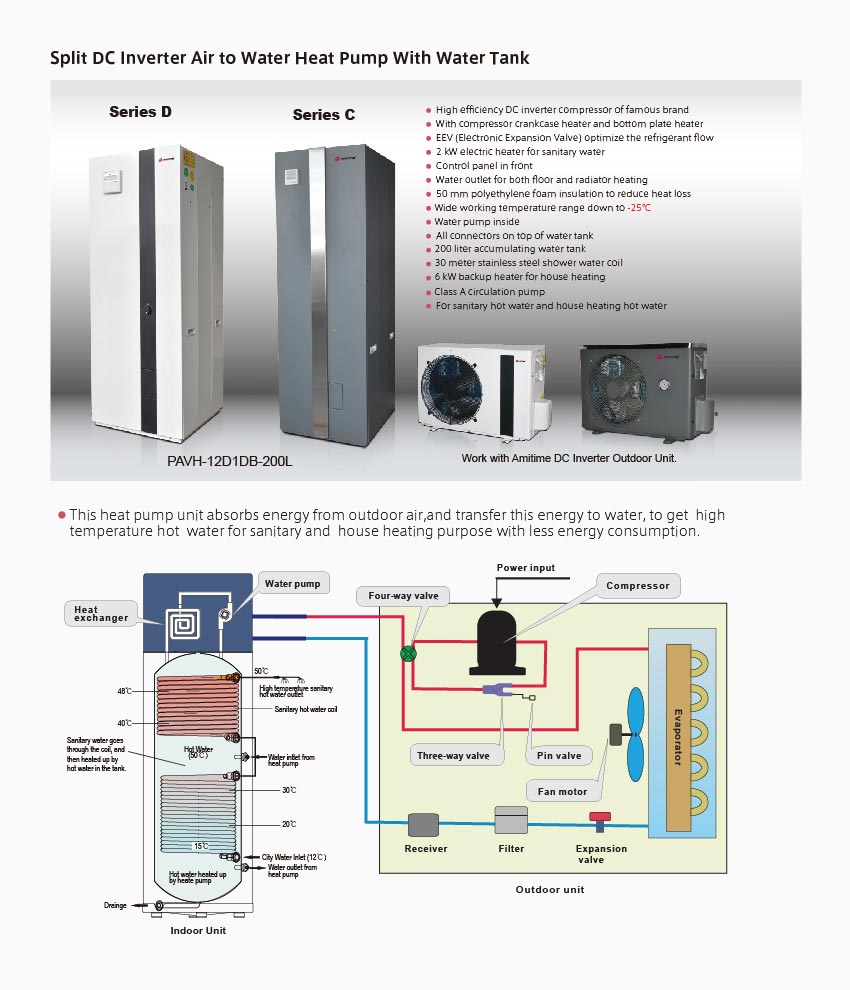

PAVH-12D1DB-200L

Refrigerant

R410A

Power Supply

V/Hz/Ph

220-240/50/1

Max. Heating Capacity (1)

kW

5.14

C.O.P (1)

W/W

3.54

Heating Capacity Min./Max.(1)

kW

2.17/5.14

Heating Power Input Min./Max.(1)

kW

0.48/1.55

C.O.P Min./Max.(1)

W/W

3.42/3.72

Max. Heating Capacity(2)

kW

4.26

C.O.P (2)

W/W

2.69

Heating Capacity Min./Max.(2)

kW

1.97/4.26

Heating Power Input Min./Max.(2)

kW

0.66/1.59

C.O.P Min./Max.(2)

W/W

2.10/3.20

Max. Cooling Capacity(3)

kW

4.00

E.E.R (3)

W/W

3.10

Cooling Capacity Min./Max.(3)

kW

1.25/4.00

Cooling Power Input Min./Max.(3)

kW

0.65/1.70

E.E.R Min./Max.(3)

W/W

2.00/3.13

Max. Cooling Capacity(4)

kW

3.64

E.E.R(4)

W/W

2.82

Cooling Capacity Min./Max.(4)

kW

1.14/3.64

Cooling Power Input Min./Max.(4)

kW

0.67/1.29

E.E.R Min./Max.(4)

W/W

1.59/2.88

Circuit Max. Pressure

bar

38

Compressor

Type

Inverter Rotary

Quantity/System

1

Fan

Quantity

1

Airflow

m³/h

1750

Rated power

W

85

Air Side Heat Exchanger

Heat Exchanger Type

Inner groved copper tube with hydrophilic
 aluminum coil

Tube Dia.

lnch

3/8″

Water Side Heat Exchanger

Type

Tube in tube Heat Exchanger

Water Pressure Drop

Kpa

30

Piping Connection

lnch

G3/4"

Water Pump

Max Water Head

m

6

Noise Level

Outdoor

dB(A)

46

Indoor

35

Water Volume

L

200

Range of setting temperature**

℃

30-52-75**

Hot water capacity*

Kg/h

120

Range of working temperature

℃

-25～45

Water pipe connection

inch

G3/4″

Max. Pressure of Water

Mpa

0.7

Inbuilt Electric Heater

kW

2(220-240V/50Hz/1PH)

Control of 2KW electric heater

Manual

Inbuilt Electric Heater

kW

6(400V/50Hz/3PH)

Control of 6KW electric heater

Auto/Manual

Refrigerant pipe connection

inch

3/8″、1/2″

Net Dimension(L×D×H)

Outdoor Unit

mm

780 × 255 × 590

Indoor Unit

mm

600 × 600 × 1552

Packing Dimension(L×D×H)

Outdoor Unit

mm

920 × 340 × 600

Indoor Unit

mm

640 × 655 × 1857

Net Weight

Outdoor

Kg

33

Indoor Unit

Kg

120.3

Indoor Unit

Kg

135.3

Note:  (1) Heating condition: Water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃;

          (2) Heating condition: Water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃;

          (3) Cooling condition: Water inlet/outlet temperature: 23℃/18℃, Ambient temperature: 35℃;

          (4) Cooling condition: Water inlet/outlet temperature: 12℃/7℃, Ambient temperature: 35℃.

          (5) Marked with "*" means: Hot water capacity is based on testing condition: DB/WB 20℃/15℃,

               target water temperature 50℃.

          (6) Marked with "**" means: water temperature can reach 52 ℃ by heat pump,

                and reach 75℃ by using electric heater simultaneously.

          (7) The specifications are subject to change without prior notice. For actual specifications of unit,

                please refer to the stickers on the unit.

          (8) Performance tested as per EN14511-2007.
